The most appropriate ground-mount for any outdoor site depends on the project size, engineering considerations, mounting surface material, soil conditions and ground topography. Therefore, Enectric offers a diverse range of ground mounting systems to ensure a solution is available for every application, location and environment.
- Each system is designed for simple installation, durability, cost-effectiveness and flexibility in design and installation.

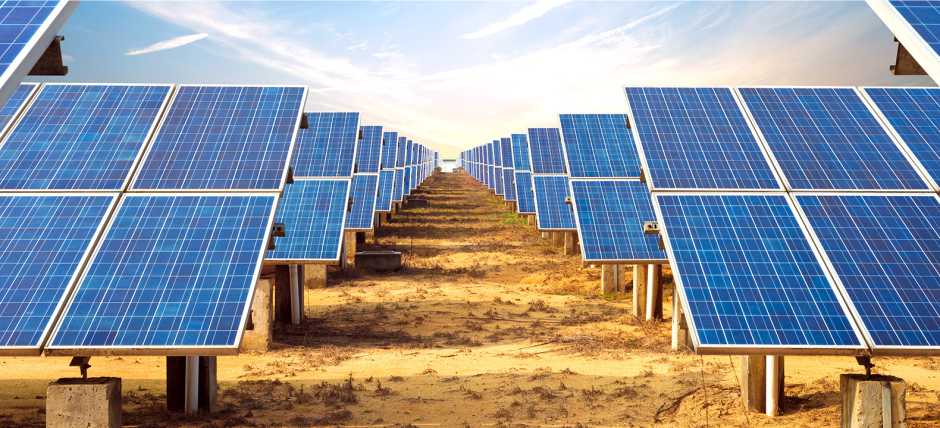

- The MW scale projects are usually ground mounted. Customer will provide land or as a developer, we identify the suitable land for solar near to the feed in substation. The land will be levelled as per project requirements.
- Approximately 5 acres are required per MW for a fixed tilt design and for Seasonal Tilt with tracking, it requires around 6 acres per MW.
- The panels are mounted on GI structures called TABLES, which is of 2 x 10 or 2 x 11 array according to the design requirements.
- The panels thus installed will be connected to ARRAY JUNCTION BOXES with monitoring facility using DC cables.
- The AJBs thus feed DC power to the Central Inverters which are kept at outdoor or indoor according to project requirements.
- The capacity of central inverters will range from 1MW, 1.25MW, 2.1MW and so on. The outdoor mounted inverters are usually containerized for handling outdoor conditions.
- The AC power thus produced will be fed to Power Transformers and then over a transmission line will be fed to nearest substation.
- The power thus evacuated can be used for GROUP CAPTIVE USE / OPEN ACCESS USE. Depends on the requirement of the customer, the power is evacuated.
- The power evacuated shall be with 11kV/33kV/110kV/220kV/400kV depending on the capacity of solar power plant and the nearest substation.
- ABT meters are installed at plant end and at customer end for recording of units produced and consumed and will be used for billing.
